- This combines complex 5 axis machining with multiple rotary tables
- This delivers counter-rotating table actions to allow for the simultaneous machining of left / right components for the automotive industry
- Suitable for: machining automotive industry components
- Workpiece applications: wheels, automotive light molds, aerospace components, and medical applications: synthetic bones
Standard Dimension
Product
Reference

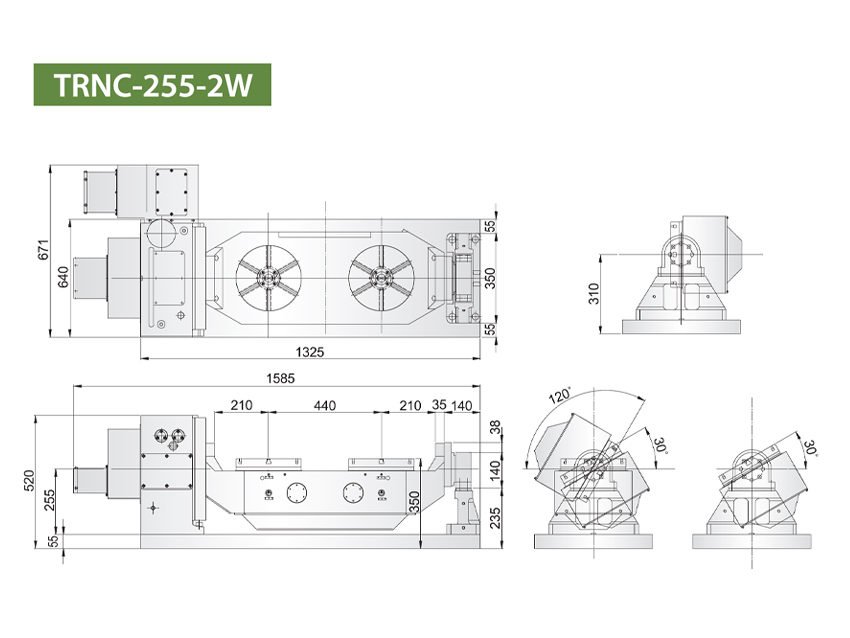

| Specifications | TRNC-255-2W | ||||
|---|---|---|---|---|---|
| Tilting Angle | -30°~+120° | ||||
| Worktable Diameter | Ø255 | ||||
| Spindle Hole Diameter | Ø50H7 | ||||
| Overall Height (90°) | 310 | ||||
| Load Capacity | 0° | 200kg |
|||
| 0°~90° | |||||
| Allowable Inertia Force | 6.4kg-cm-sec2 | ||||
| Allowable Turntable Torque | 16kg-m | ||||
| Max. Diameter of Worktable | Ø255 | ||||
| Servo Motor (Model As Required) | Rotation | Tilting | |||
| FANUC | MELDAS | FANUC | MELDAS | ||
| α8i | HF-154T | α12i | HF-204S | ||
| Clamping Torque (Hydraulic 35kg/cm2) | 70kg-m | 500kg-m | |||
| Reduction Ratio | 1/120 | ||||
| Minimum Input Increment | 0.001° | 1° | |||
| Table Rotation Speed | 25 (Motor 3000 rpm) | ||||
| Index Accuracy | 20sec | ||||
| Repeatability | 4sec | ||||
| Weight | 888kg | ||||
